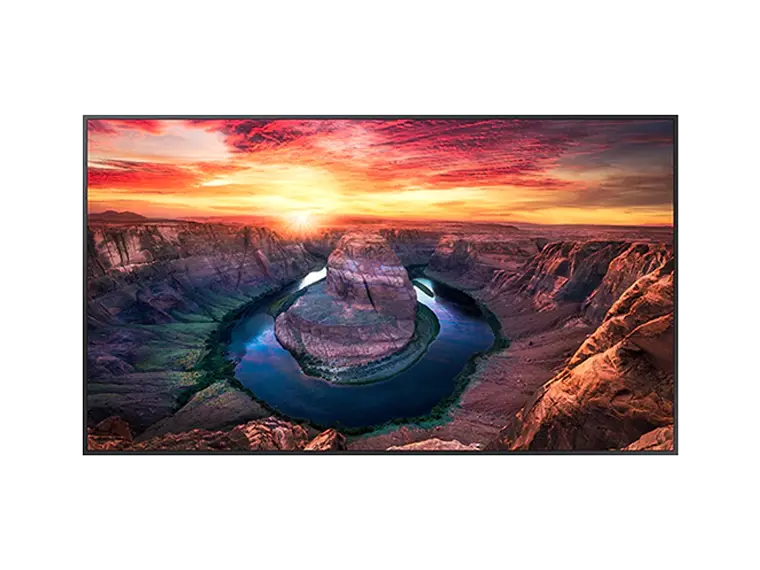

This is a 55-inch video wall display intended for commercial signage and digital display walls (e.g. in malls, control rooms, lobbies, boardrooms).
The very narrow bezel (≈ 3.5 mm total bezel-to-bezel) allows multiple panels to be tiled side by side with minimal visual interruption, creating seamless large screens.
Designed for 24/7 continuous operation, meaning it can run non-stop in professional settings.
Uses IPS (In-Plane Switching) panel technology for wide viewing angles and consistent color.
Display & Image Specs
Specification
Typical / Expected Value
Screen Size (Diagonal)
55 inches
Resolution
1,920 × 1,080 (Full HD)
Brightness (typical)
~ 500 nits / cd/m²
Contrast Ratio
≈ 1,200 : 1 (static)
Viewing Angle (H / V)
178° / 178°
Response Time
~ 8 ms
Color Gamut
~ 72% (standard commercial range)
Pixel Pitch
~ 0.63 mm × 0.63 mm
Glass Haze / Anti-Glare
~ 25% haze (to reduce reflections)
Operating Hours
24/7 support (continuous usage)
These specs make it excellent for video wall applications where images must be crisp, stable, and viewable from various angles.
Samsung often includes UHD upscaling / Intelligent Processing so even though the native resolution is Full HD, multiple units in a wall can display high-resolution content with good effect. (exertisproav.de)
Video Daisy Chain / Loop-out: The display supports chaining over DP 1.2, allowing a single source to feed multiple screens in a video wall without needing a separate external matrix for every unit. (image.makewebeasy.net)
External Controls / Communication: • RS-232C (in / out) • RJ-45 / LAN (for network control) • IR input
Audio I/O: There is a stereo audio output (mini-jack) and audio input (mini-jack) — for routing sound downstream if needed.
HDCP Support: Supports HDCP (content protection) to allow encrypted content to display properly.
Automatic Source Switching & Recovery, Button Lock, Firmware Update over Network are among the software features built in. (image.makewebeasy.net)
Mechanical & Physical Attributes
Dimensions (WxHxD): ~ 1213.5 × 684.3 × 73.1 mm (device.report)
Bezel Width: The bezel-to-bezel gap is approximately 3.5 mm when units are tiled – achieved via ultra-narrow edges: top/left ~2.25 mm, bottom/right ~1.25 mm. (GIFTGUIDE)
Mounting / VESA: 600 × 400 mm mounting pattern, supporting both landscape and portrait orientations. (device.report)
Operating Environment: Designed to run in ambient temperatures from 0 °C to 40 °C, humidity from 10% to 80% (non-condensing) (device.report)
Durability & Additional Features
IP5x Dust Protection Certification: The display is certified to resist dust ingress (no extra enclosure needed in dusty environments). (image.makewebeasy.net)
Factory Color Calibration & Uniformity: Each unit undergoes multi-step calibration to ensure consistent color and brightness when panels are tiled.
Color Expert Pro / Mobile Calibration Support: Samsung provides software (Color Expert Pro) and mobile-based tools to fine-tune white balance and color for wall setups (e.g., 3×3 array) (jp-uk.co.uk)
Seamless Video Wall Integration: • The narrow bezel plus daisy-chain support allows cleanly tiled walls with minimal visual discrepancy. • Auto Source Switching & Recovery ensures smooth operations if any input source issue arises.
Power & Efficiency: • Power supply: AC 100–240V, 50/60 Hz (device.report) • Typical power consumption around ~220 W (on mode) • Sleep mode consumption < 0.5 W (GIFTGUIDE)
Use Cases & Advantages
This kind of video wall display is ideal where large-format, continuous visual messaging is required:
Retail stores & mall displays
Corporate lobbies / reception walls
Control rooms, command centers
Conference halls, auditoriums
Exhibition & event backdrops
Advantages:
Seamlessness: Ultra-narrow bezels make the seams barely noticeable, creating a continuous visual canvas.
24/7 Reliability: Built for continuous professional use.
Scalability: Daisy-chain support lets you expand walls easily without excessive external hardware.
Uniform image quality: Factory calibration ensures each panel matches in brightness and color.
Robustness: With IP5x protection and durable build, it withstands dust and challenging indoor environments.
